Laminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test Cabinet

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 30W

Protection Class : IP56

Voltage : 220V

Temperature Range : RT + 10℃ to + 100℃

Temperature Fluctuation : ≤ ±1℃

Temperature Uniformity : ≤ ±2℃

Dimensions : 650*300*600mm

Test Duration : 2 hours

Compliance Standard : GB15763.3-2009

Test Type : Heat Resistance

Sample Size : Laminated Glass

Test Method : Boiling Water Immersion

Observed Phenomena : Bubbles, Delamination

Equipment Size : 650*300*600mm

Material Compatibility : Architectural, Automotive Glass

Contact Now

Laminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test Cabinet

Product Description

Introduction

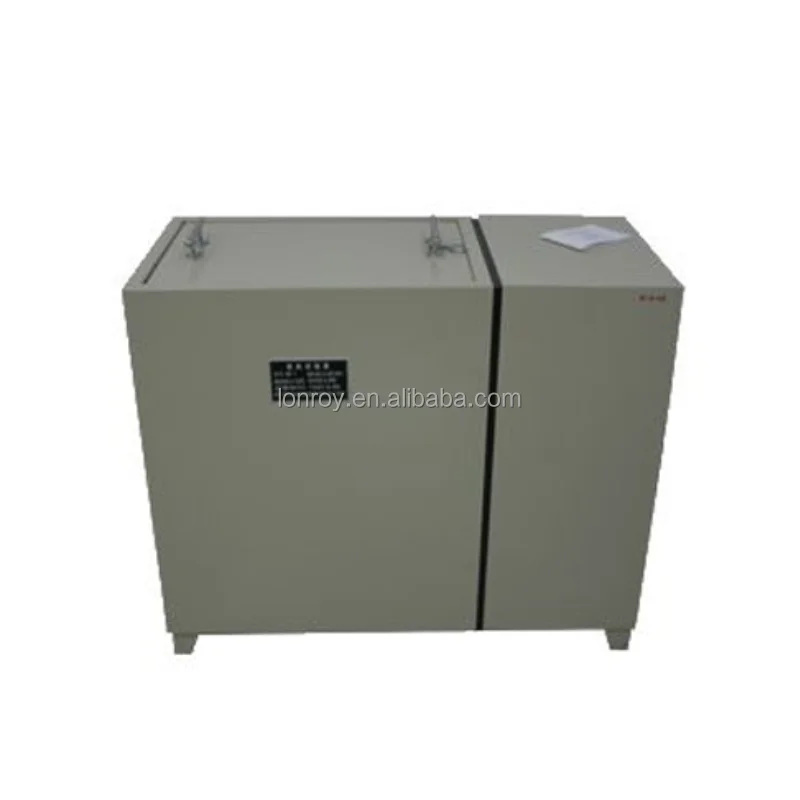

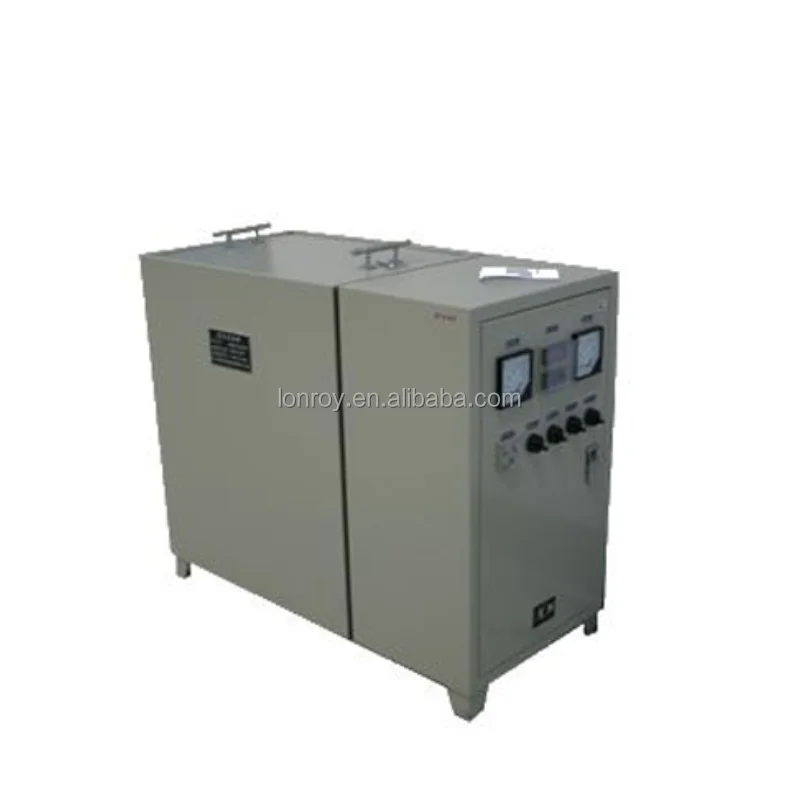

The boiling test chamber is a testing device manufactured in accordance with the national standard GB15763 "Laminated Glass". This device is mainly used to test the heat resistance of laminated glass. It is applicable to both architectural and automotive laminated glass.

Place the sample in the boiling water tank and keep it for 2 hours. Observe whether there are bubbles, delamination or other phenomena on the sample.


Laminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test Cabinet

Technical Specification

Temperature Range

RT + 10℃ to + 100℃ (RT = Room Temperature)

Temperature Fluctuation

≤ ±1℃

Temperature Uniformity

≤ ±2℃

Equipment Size

650*300*600mm

Compliance Standard

Complies with the requirements of GB15763.3-2009 "Building Safety Glass - Part 3: Laminated Glass"

Laminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test CabinetLaminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test CabinetLaminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test CabinetLaminated Glass Heat Resistance Testing Machine Boiling Resistance Test Chamber Boiling Resistance Test Cabinet
